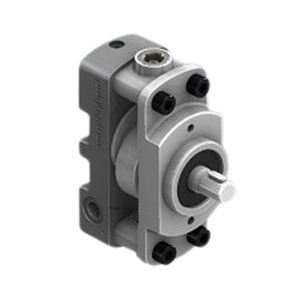

Polyhydron Radial Piston Pumps General Description & Features

• Polyhydron manufactures a variety of radial piston (radial plunger) pumps under different model series: e.g. 1R, 1RC/1RCE, 2R, 2RC, 11R, 12R etc.
• These pumps are typically oil-immersed, open execution, face mounting, valve controlled, and provide fixed displacement per revolution.
• The pump design uses a radial piston arrangement: multiple pistons (3, 5, 7, or sometimes 9) are arranged around a central shaft, each piston driven by eccentric motion.
• Many models allow bi-directional rotation (i.e. no restriction on rotation direction).
• Some variants (e.g., “RE” suffix) include an extension shaft for through-drive or coupling to another pump.
• They are used in hydraulic systems where a compact, fixed-displacement, high-pressure pump is needed.

Working Principle (Radial Piston Pump Basics)

• The central shaft contains an eccentric cam or ring which forces the pistons outward and inward in their cylinders.
• During the inward stroke (retraction), the suction valve opens, drawing fluid into the cylinder.
• During the outward stroke (extension), the fluid is pushed through the delivery valve to the outlet port.
• Because the pistons are arranged radially, the pump is compact and symmetrical.
• The valve-control element ensures correct timing of suction/delivery per piston as the shaft rotates.
• The pump provides a fixed displacement (i.e., fixed volume per revolution).
• Bi-directional capability means the pump can pump fluid in either direction of shaft rotation (depending on porting and valve arrangement).

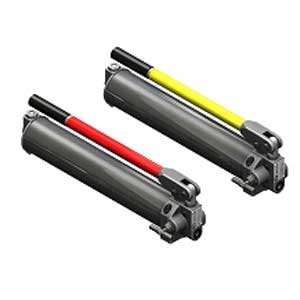

Polyhydron Hand Pumps (HP Series)

Polyhydron also produces manual (hand-operated) hydraulic pumps, used for small or emergency applications.

Description & Features (HP12 / HP16 models)

From the datasheet for HP12 / HP16

• They have a collapsible handle, which makes transport easier and reduces required force when extended.
• Internal parts are renewable / replaceable.
• They have an integral relief & release valve for safety and controlled release.
• There’s a special air breather which prevents airborne impurities from entering the tank, improving longevity.
• The pump can be supplied with a larger tank, if needed.

Other Features:

• Sealed piston, with ball-type suction and delivery valves.
• Two G 1/4 ports (alternate / outlet) and an air breather port.
• Release valve and oil filling & bleeding ports included in the design.
• Sturdy construction compatible with hydraulic mineral oils.
• The operator moves the lever; piston draws oil into the cylinder on the return stroke, then pushes it on the push stroke.
• The built-in relief / release valve protects against overpressure.
• The collapsible lever helps with ergonomics, giving mechanical advantage for high pressures.
• The air breather ensures the reservoir remains clean.
